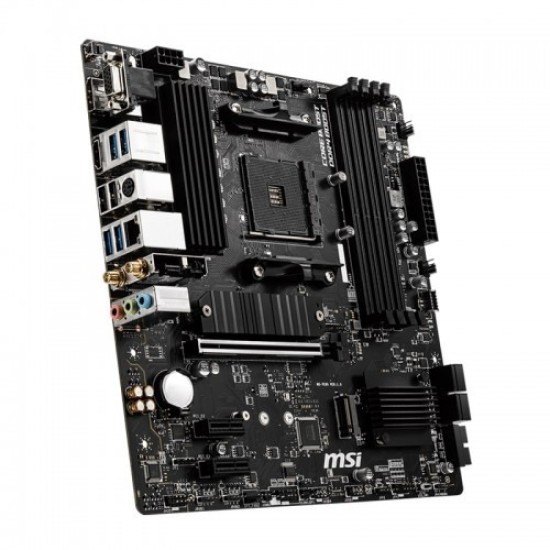

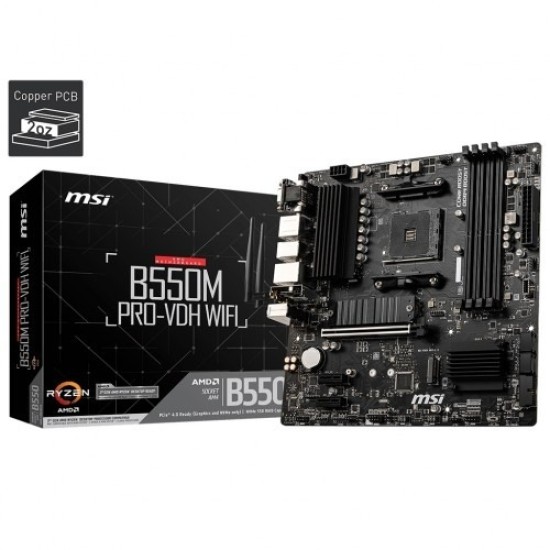

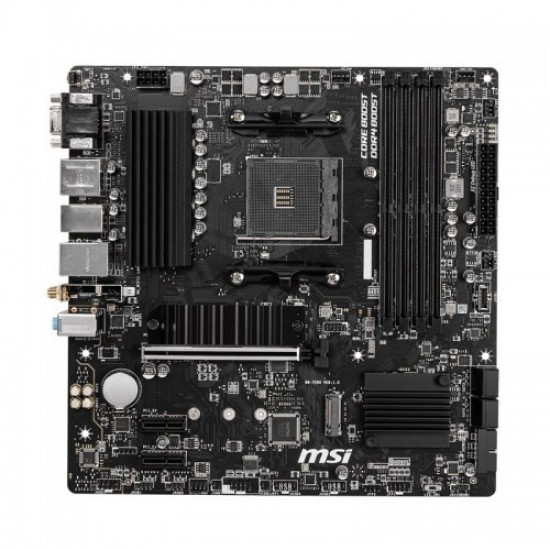

MSI B550M Pro-VDH Wi-Fi AM4 AMD Micro-ATX Motherboard
MSI B550M Pro-VDH Wi-Fi AM4 Micro-ATX Motherboard is a well-balanced and feature-rich option for building a modern AMD-based system. Designed to support AMD Ryzen 5000/4000G Series and 3rd Generation Ryzen processors, this motherboard offers excellent performance, stability, and expandability. Built on the AMD B550 chipset, it ensures next-generation connectivity, including PCIe 4.0 support when paired with a compatible CPU, making it ideal for gaming, multitasking, and productivity. This motherboard’s compact Micro-ATX form factor (24.4 cm x 24.4 cm) fits easily into most cases while still delivering extensive functionality. It includes one PCIe 4.0/3.0 x16 slot for high-speed graphics cards and two PCIe 3.0 x1 slots for additional expansion cards such as network adapters or capture cards. For storage, the board features dual M.2 slots, both supporting high-speed NVMe SSDs. The primary M.2 slot (M2_1) is connected directly to the processor and supports PCIe 4.0/3.0 x4 and SATA drives, while the secondary slot (M2_2) supports PCIe 3.0 x4. Additionally, there are four SATA 6Gb/s ports for traditional SSDs and HDDs, ensuring flexible storage expansion. Memory support is one of the strong points of this model. With four DDR4 slots, it can accommodate up to 128GB of dual-channel RAM. It supports JEDEC speeds up to 3200MHz and overclocked speeds up to 4400+ MHz through MSI’s A-XMP OC Mode. This wide compatibility ensures smooth performance whether you’re gaming, editing videos, or running heavy applications. The MSI B550M Pro-VDH Wi-Fi also delivers solid graphics output options, especially for Ryzen APUs. It includes VGA, HDMI 2.1, and DisplayPort, all capable of delivering resolutions up to 4096x2160 @60Hz, making it suitable for multi-display setups or high-resolution monitors.
Connectivity is another highlight. The board includes numerous USB ports, including USB 3.2 Gen 1 Type-A, internal USB headers, and several USB 2.0 options. For networking, it features a Realtek Gigabit LAN controller along with built-in Intel Dual Band Wireless-AC 3168 Wi-Fi, supporting speeds up to 433Mbps and Bluetooth 2.1 to 4.2 + BLE, offering reliable wireless connectivity. Additional features include Realtek ALC892 7.1-channel HD audio, multiple fan headers, RGB and RAINBOW LED connectors, TPM support, and a Clear CMOS jumper. These features provide customization, cooling control, and enhanced system security. Overall, the MSI B550M Pro-VDH Wi-Fi is a powerful, versatile, and future-ready motherboard for budget to mid-range PC builders.
Features
- Supports AMD Ryzen 5000/4000G Series & 3rd Gen Ryzen Processors
- Equipped with AMD B550 chipset for enhanced performance
- Micro-ATX form factor (24.4 cm x 24.4 cm)
- 1x PCIe 4.0/3.0 x16 slot for high-speed GPUs
- 2x PCIe 3.0 x1 slots for expansion cards
- 2x M.2 slots supporting PCIe NVMe and SATA storage
- M2_1 supports PCIe 4.0/3.0 x4 & SATA 6Gb/s
- M2_2 supports PCIe 3.0 x4
- Supports 2242/2260/2280 M.2 sizes
- 4x DDR4 RAM slots, up to 128GB dual-channel memory
- Supports memory OC speeds up to 4400+ MHz (A-XMP)
- Supports non-ECC and ECC UDIMM memory

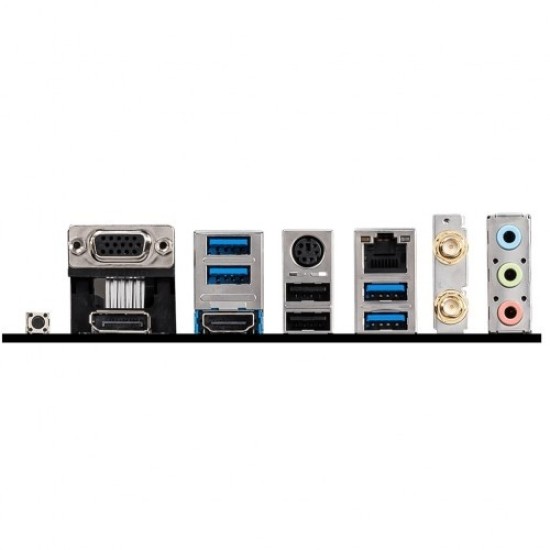

- 1x VGA, 1x HDMI 2.1, 1x DisplayPort for high-resolution displays
- Maximum display resolution 4096×2160 @60Hz
- 4x SATA 6Gb/s ports
- 4x USB 3.2 Gen 1 Type-A (back panel)
- 3x USB 3.2 Gen 1 internal ports including Type-C
- 6x USB 2.0 ports (back panel + internal)
- Realtek 8111HN Gigabit LAN
- Intel Dual Band Wireless-AC 3168 Wi-Fi (2.4/5GHz up to 433 Mbps)
- Built-in Bluetooth 2.1 to 4.2 + BLE
- Realtek ALC892 7.1-channel HD audio
- Includes CPU fan, water pump, and system fan connectors
- RGB and RAINBOW LED headers for lighting customization
- TPM module connector for system security
- Clear CMOS jumper for easy reset
