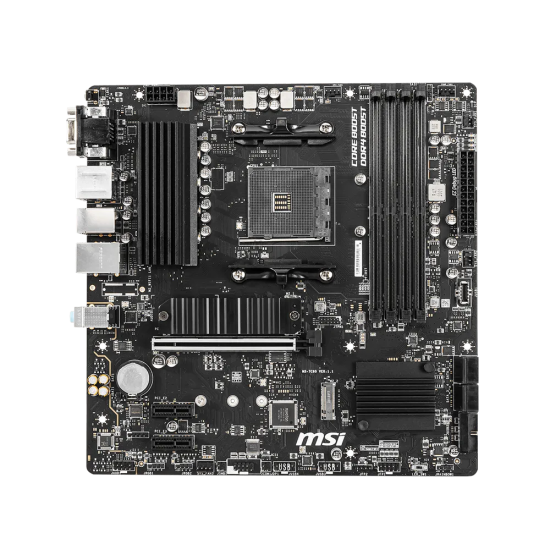

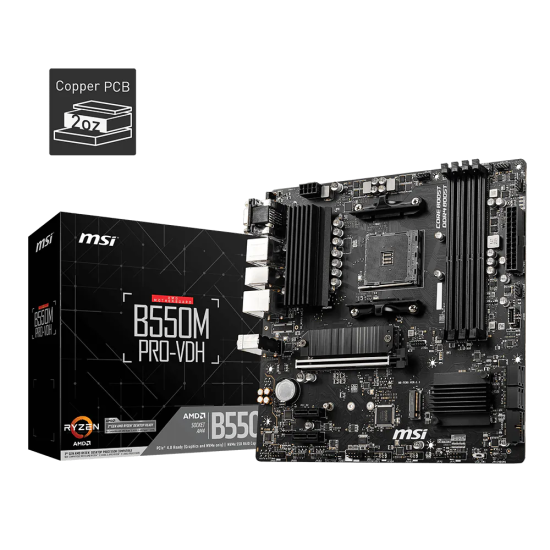

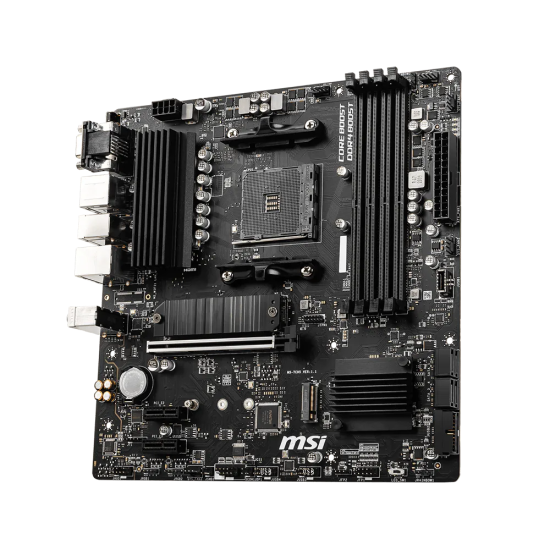

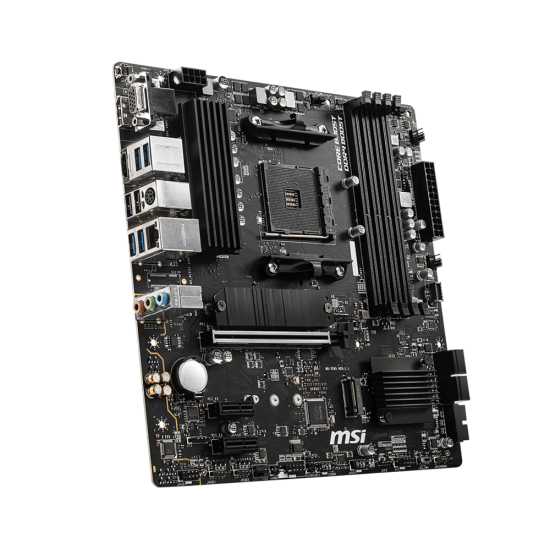

MSI B550M PRO-VDH AMD AM4 Micro-ATX Motherboard

Status: In Stock
Brand: MSI
Model: MSI B550M PRO-VDH

Based on 0 reviews. - Write a review

14,000৳

Ex Tax: 14,000৳

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে |

Key Features

Chipset: AMD B550
Supported CPU: AMD Ryzen 5000 / 4000 G / 3000 Series (G-Series compatible)
Memory Slot: 4x DDR4 DIMM Slots
Memory Max.: 128GB
Storage: Lightning Gen 4 M.2 Support

Chat Through

Messenger

Basic Information
Supported CPU	Support for 3rd Gen AMD® Ryzen™ processors and future AMD® Ryzen™ 4000 G-Series Desktop Processors
Chipset	AMD® B550 Chipset
Form Factor	Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Audio	Realtek ALC892 Codec 7.1-Channel High Definition Audio
Expansion Slots
M.2 Socket	1x M.2 Gen4 x4 slot, 1x M.2 Gen3 x4 slo
PCI	1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 2x PCIe 3.0 x1 slots
Graphics Information
Graphics	1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
Max Shared Graphics	16GB
Memory Information
Memory Type	Dual-channel memory architecture
Slots	4x DDR4 memory slots
Maximum Memory	128GB

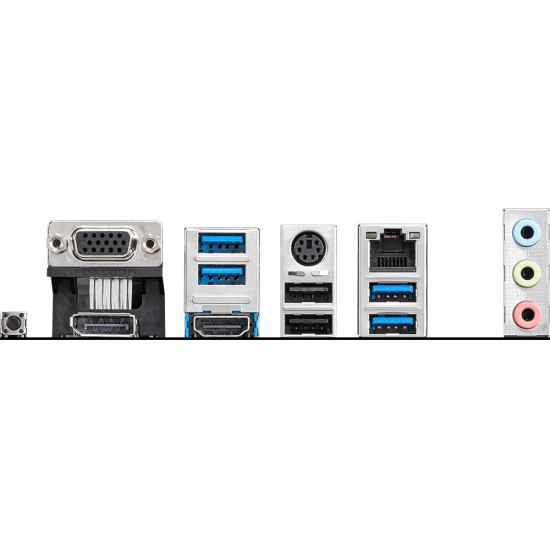

Connector & Ports
VGA	Yes
HDMI	1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
Display Port	1x DisplayPort supports a maximum resolution of 4096x2160 @60Hz
LAN Port (s)	Realtek® RTL8111HN Gigabit LAN
Supported Storage	AMD B550 Chipset 4x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices
USB (s)	AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Manufacturer Warranty
Warranty Details	03 Years Brand Warranty

The MSI B550M PRO-VDH is a high-performance Micro-ATX motherboard built for AMD Ryzen 5000, 4000 G-Series, and 3000 Series processors. Designed for professional workflows, it features the AMD B550 chipset with Lightning Gen 4 M.2 support for incredible data speeds. It includes Core Boost technology and DDR4 Boost for optimal performance and signal stability. With a robust thermal solution including extended heatsinks and M.2 Shield Frozr, it ensures your system remains cool and stable under heavy loads. This motherboard is an excellent choice for users seeking a reliable, high-speed foundation for productivity and creative PC builds.
