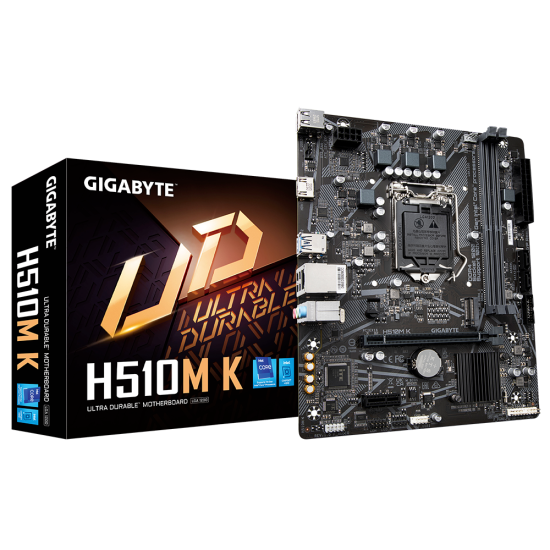

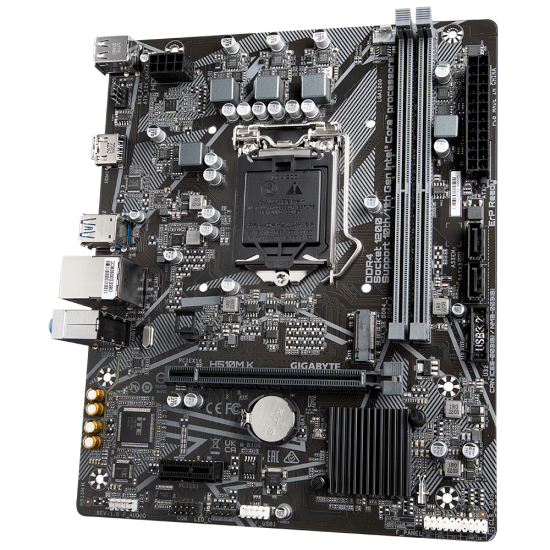

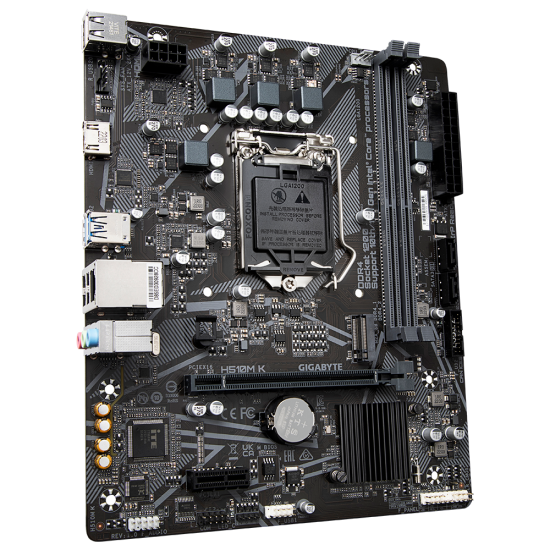

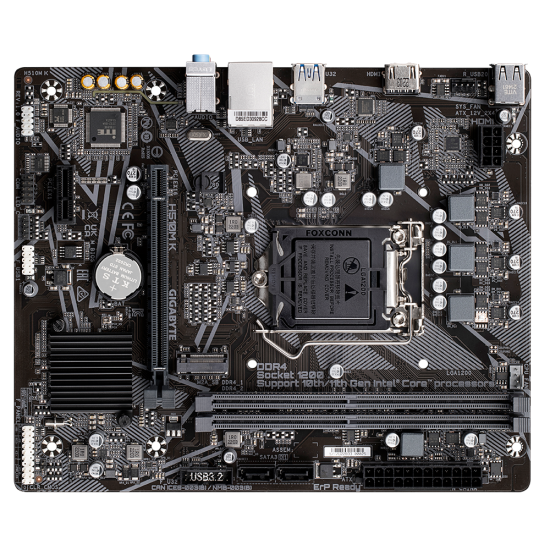

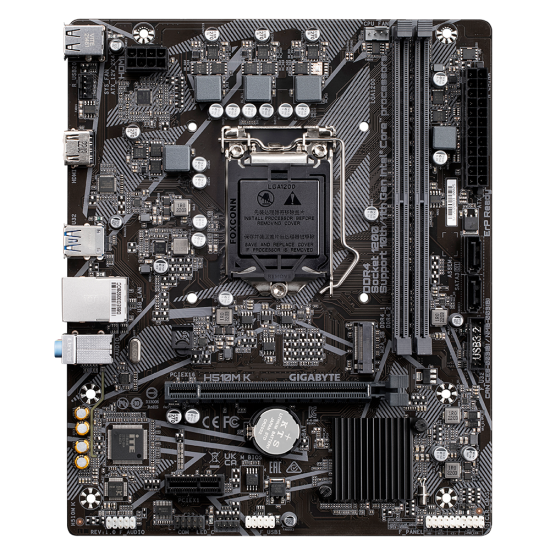

Gigabyte H510M K Intel Micro-ATX DDR4 Motherboard

Gigabyte H510M K Intel Micro-ATX DDR4 Motherboard
Gigabyte H510M K Intel Micro-ATX DDR4 Motherboard
Gigabyte H510M K Intel Micro-ATX DDR4 Motherboard
Gigabyte H510M K Intel Micro-ATX DDR4 Motherboard
Gigabyte H510M K Intel Micro-ATX DDR4 Motherboard
Gigabyte H510M K Intel Micro-ATX DDR4 Motherboard
Gigabyte H510M K Intel Micro-ATX DDR4 Motherboard
Gigabyte H510M K Intel Micro-ATX DDR4 Motherboard
Gigabyte H510M K Intel Micro-ATX DDR4 Motherboard
Gigabyte H510M K Intel Micro-ATX DDR4 Motherboard
Gigabyte H510M K Intel Micro-ATX DDR4 Motherboard
Gigabyte H510M K Intel Micro-ATX DDR4 Motherboard
Gigabyte H510M K Intel Micro-ATX DDR4 Motherboard
  • Status: In Stock
  • Brand: Gigabyte
  • Model: Gigabyte H510M K
Based on 0 reviews. - Write a review
9,600৳
Ex Tax: 9,600৳
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে |

Key Features

  • CPU: Supports 11th/10th Gen Intel® Core™ Processors
  • Chipset: Intel® H510 Express
  • Memory: 2 x DDR4 DIMM sockets (Up to 64GB)
  • Storage: 1 x M.2 connector + 2 x SATA 6Gb/s ports
  • Expansion: 1 x PCIe x16 slot + 1 x PCIe x1 slot

Chat Through

Whatsapp
Messenger
Basic Information
Supported CPU CPU
LGA1200 package:
11th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors
10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors
L3 cache varies with CPU

(Please refer “CPU Support List” for more information.)
Chipset Intel® H510 Express Chipset
Generation Intel 10th/11th Gen
Form Factor Micro ATX Form Factor; 22.6cm x 18.5cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Expansion Slots
M.2 Socket 1 x M.2 connector:
Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD
PCI CPU:
1 x PCI Express x16 slot:
Supporting PCIe 4.0 and running at x16
(PCIe 4.0 is only supported by 11th-generation processors.)

Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Graphics Information
Graphics Integrated Graphics Processor-Intel® HD Graphics support:
Memory Information
Memory Type 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Slots 2 x DDR4 DIMM sockets
Maximum Memory 64 GB (32 GB single DIMM capacity)

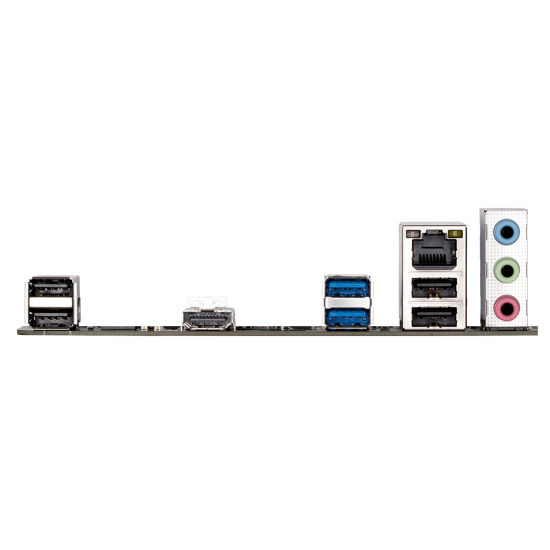

Connector & Ports
VGA No
HDMI Yes
Display Port No
LAN Port (s) Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Supported Storage 1 x M.2 connector:
Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD
2 x SATA 6Gb/s connectors
USB (s) Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Manufacturer Warranty
Warranty Details 03 Years Brand Warranty

Gigabyte Intel H510M Ultra Durable Motherboard

Built for reliability and performance, this Intel H510 Chipset motherboard supports 10th & 11th Gen Intel Core processors (LGA1200). It is the perfect Micro-ATX solution for professional workstations and entry-level gaming builds.

Key Highlights:

  • Next-Gen Speed: Supports PCIe 4.0 x16 for modern GPUs and an M.2 (PCIe 3.0 x4) slot for fast NVMe SSDs.

  • Memory: Dual-channel DDR4 slots supporting up to 64GB (3200MHz with 11th Gen CPUs).

  • Connectivity: Features HDMI 1.4 (4K Support), Realtek Gigabit LAN, and high-speed USB 3.2 Gen 1 ports.

  • Durability: Equipped with Smart Fan 5 for advanced cooling control and High-End Audio Capacitors for 7.1-channel HD sound.

  • Modern OS: Fully compatible with Windows 11 and 10 (64-bit).

Compact, efficient, and durable—this motherboard offers the essential features needed for a stable and high-speed PC experience.
