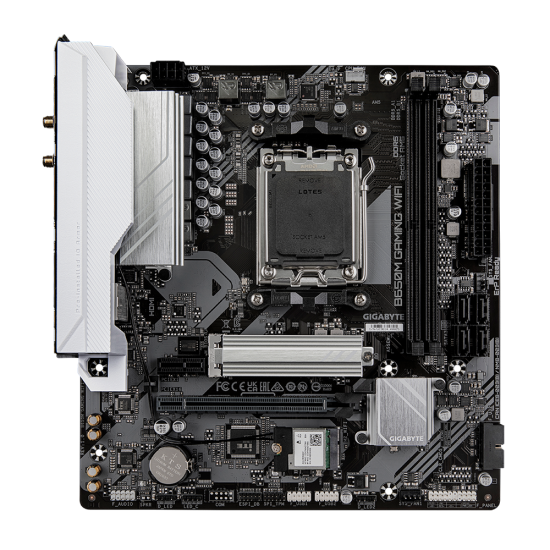

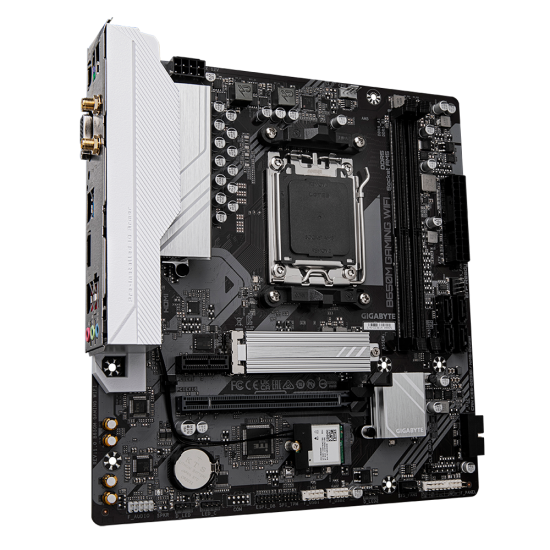

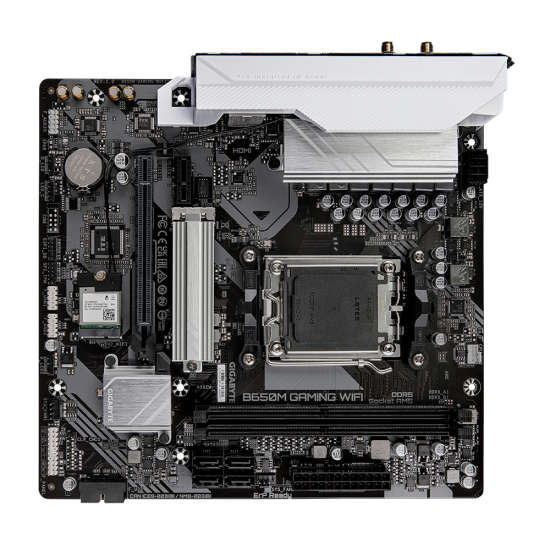

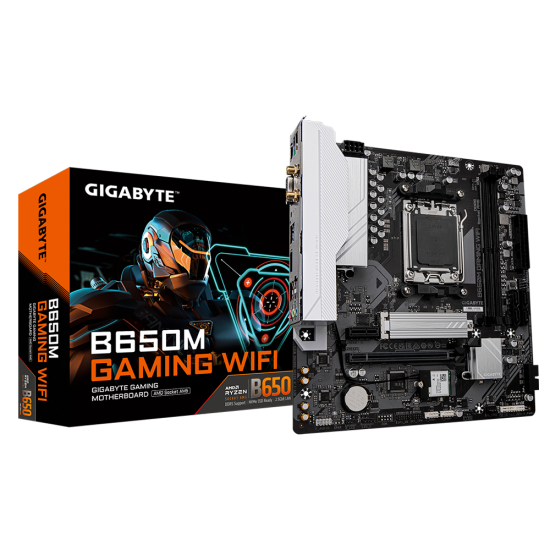

Gigabyte B650M GAMING WIFI AMD AM5 Micro-ATX Motherboard

Gigabyte B650M GAMING WIFI AMD AM5 Micro-ATX Motherboard

Status: In Stock
Brand: Gigabyte
Model: GIGABYTE B650M GAMING WIFI

Based on 0 reviews. - Write a review

16,800৳

Ex Tax: 16,800৳

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে |

Key Features

Chipset: AMD B650
Supported CPU: AMD Ryzen 9000, 8000 & 7000 Series
Memory: 2x DDR5 DIMM Slots, Up to 96GB
Connectivity: Built-in Wi-Fi & Bluetooth
Storage: PCIe 4.0 M.2 Support

Chat Through

Messenger

Basic Information
Supported CPU	AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.)
Chipset	AMD B650
Form Factor	Micro ATX Form Factor; 24.0cm x 22.5cm
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Expansion Slots
M.2 Socket	1 x M.2 connector
PCI	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen 7000 Series Processors/ Ryzen 9000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Graphics Information
Graphics	Onboard Graphics Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.)
Memory Information
Memory Type	DDR5
Slots	4 DIMMs
Maximum Memory	Up to 128 GB (64 GB single DIMM capacity)

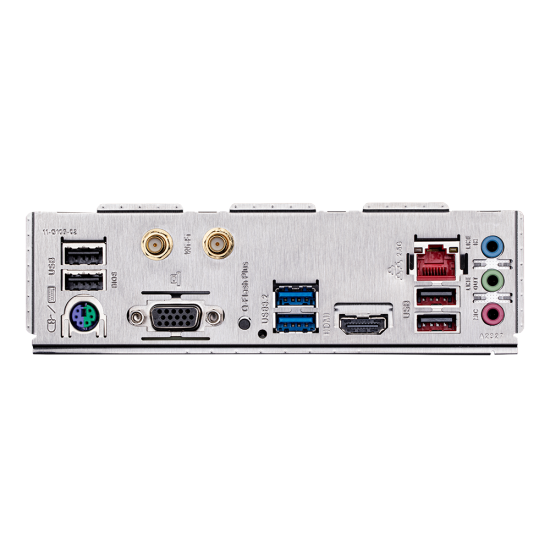

Connector & Ports
VGA	Yes
HDMI	Yes
LAN Port (s)	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage	1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: - AMD Ryzen 7000 Series Processors/ Ryzen 9000 Series Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors
USB (s)	CPU: - 2 x USB 3.2 Gen 1 ports on the back panel - 1 x USB 2.0/1.1 port on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 5 x USB 2.0/1.1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: - 2 x USB 2.0/1.1 ports available through the internal USB header
Manufacturer Warranty
Warranty Details	03 Years Brand Warranty

Future-Ready Performance for Next-Gen Gaming The Gigabyte B650M GAMING WIFI is a high-performance Micro-ATX motherboard built for AMD Ryzen 9000, 8000, and 7000 Series processors. Designed for the latest AM5 platform, it provides a stable and efficient foundation for high-end gaming and professional productivity.

Key Performance Features:

DDR5 Memory Support: Features dual-channel DDR5 slots for extreme memory speeds and improved system responsiveness.
Advanced Power Design: Equipped with a 5+2+2 phases digital VRM solution to ensure stable power delivery under heavy workloads.
High-Speed Storage: Includes a PCIe 4.0 x4 M.2 connector for ultra-fast NVMe SSD performance.
Seamless Connectivity: Built-in Wi-Fi and Bluetooth 5.x support for hassle-free wireless networking and peripheral connection.
Thermal Management: Features Smart Fan 6 technology with multiple temperature sensors and hybrid fan headers for optimized cooling.
