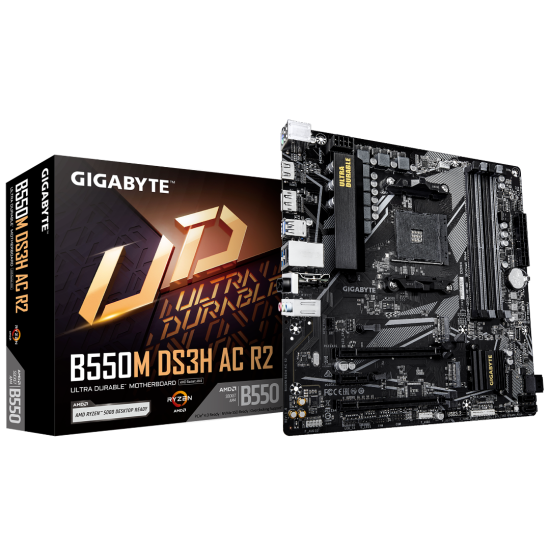

Gigabyte B550M DS3H AC R2 AMD AM4 Micro-ATX Motherboard (Wi-Fi)

Gigabyte B550M DS3H AC R2 AMD AM4 Micro-ATX Motherboard (Wi-Fi)

Status: In Stock
Brand: Gigabyte
Model: Gigabyte B550M DS3H AC R2 (WiFi)

Based on 0 reviews. - Write a review

12,700৳

Ex Tax: 12,700৳

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে |

Key Features

Chipset: AMD B550
Supported CPU: AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series and 3000 Series
Connectivity: Dual Band Wi-Fi & Bluetooth 4.2
Memory Slot: 4x DDR4 DIMM Slots
Expansion: PCIe 4.0 x16 Slot Ready

Chat Through

Messenger

Basic Information
Supported CPU	AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.)
Chipset	AMD B550
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Audio	Realtek® ALC1220 CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Expansion Slots
M.2 Socket	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs
PCI	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 5000/3000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Graphics Information
Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports.
Max Shared Graphics	16 GB
Memory Information
Memory Type	DDR4
Slots	4 x DDR4 DIMM sockets
Maximum Memory	Supporting up to 128 GB (32 GB single DIMM capacity)
Connector & Ports
VGA	Yes
HDMI	Yes
LAN Port (s)	Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Supported Storage	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: - AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs - AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices

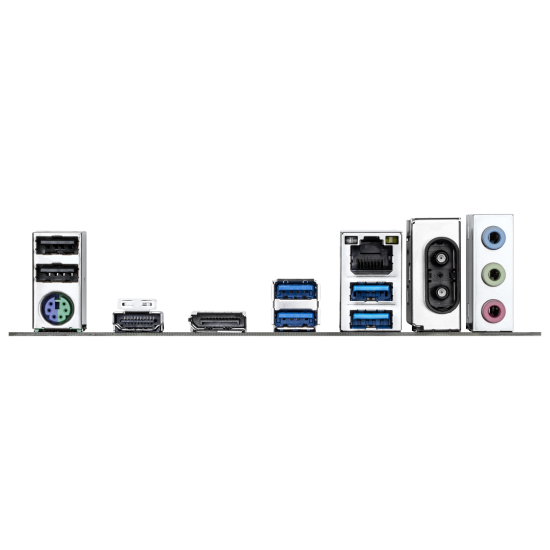

USB (s)	CPU: - 4 x USB 3.2 Gen 1 ports on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Manufacturer Warranty
Warranty Details	03 Year Brand Warranty

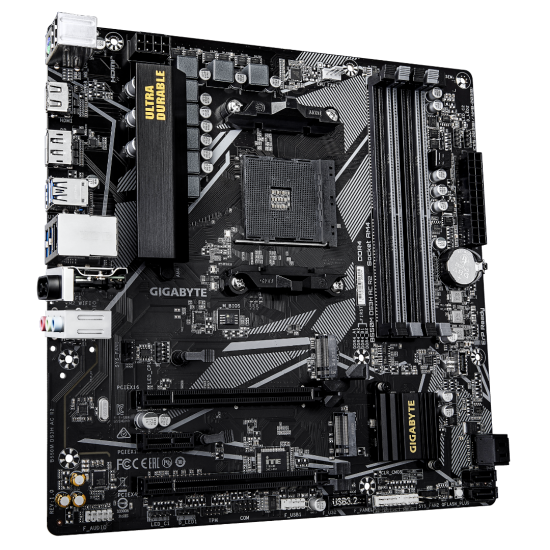

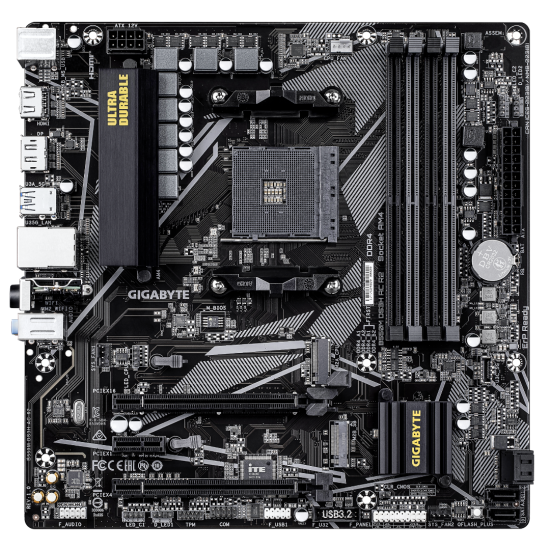

The Gigabyte B550M DS3H AC is a versatile Micro-ATX motherboard designed for AMD Ryzen 5000, 5000 G, 4000 G, and 3000 series processors. It features the AMD B550 chipset with PCIe 4.0 support, providing faster data bandwidth for the latest graphics cards and NVMe SSDs. This motherboard comes with built-in Dual Band 802.11ac Wi-Fi and Bluetooth 4.2 for seamless wireless connectivity. With Dual M.2 slots, high-quality audio capacitors, and Smart Fan 5 technology, it ensures a stable and cool computing environment. The RGB FUSION 2.0 support also allows for advanced lighting customization, making it a great choice for both gaming and productivity builds.
