Gigabyte A520M K V2 AMD AM4 Micro-ATX Motherboard

Name: Gigabyte A520M K V2 AMD AM4 Micro-ATX Motherboard
Brand: Gigabyte
Price: 8100.00 BDT
Availability: InStock

Gigabyte A520M K V2 AMD AM4 Micro-ATX Motherboard

Status: In Stock
Brand: Gigabyte
Model: Gigabyte A520M K V2

Based on 0 reviews. - Write a review

8,100৳

Ex Tax: 8,100৳

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে |

Key Features

Chipset: AMD A520
Supported CPU: AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series and 3000 Series
Generation: AMD AM4 Architecture
Memory Slot: 2x DDR4 DIMM Slots
Memory Max.: 64GB

Chat Through

Messenger

Basic Information
Supported CPU	AMD Socket AM4; Support for: AMD Ryzen™ 5000 G-Series Processors AMD Ryzen™ 5000 Series Processors AMD Ryzen™ 4000 G-Series Processors AMD Ryzen™ 3000 Series Processors
Chipset	AMD® A520 Chipset
Form Factor	Micro ATX Form Factor; 23.3cm x 19.8cm
Audio	• Realtek Audio CODEC; • High Definition Audio; • 2/4/5.1/7.1-channel;
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Expansion Slots
M.2 Socket	1 x M.2 connector
PCI	• CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16; • Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Graphics Information
Graphics	• Integrated Graphics Processor; • Supporting 4096x2160@60 Hz; • Support for HDMI 2.0 version;
Max Shared Graphics	16 GB
Memory Information
Memory Type	DDR4
Slots	2 x DIMM
Maximum Memory	64 GB (32 GB single DIMM capacity)

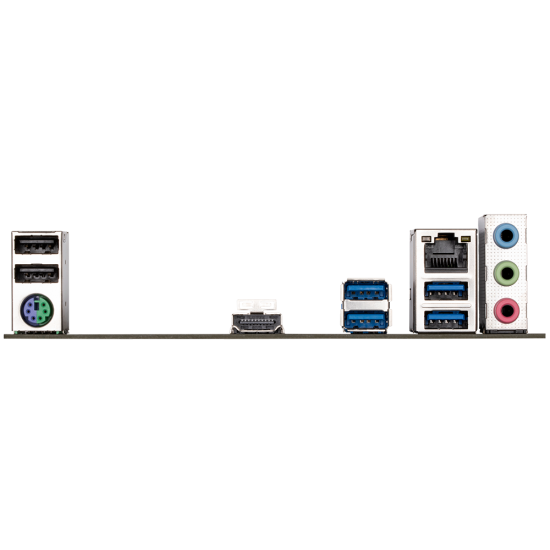

Connector & Ports
VGA	Yes
HDMI	Yes
LAN Port (s)	Realtek GbE LAN chip (1 Gbps/ 100 Mbps)
Supported Storage	• 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4); • 4 x SATA 6Gb/s connectors
USB (s)	CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Manufacturer Warranty
Warranty Details	03 Year Brand Warranty

The Gigabyte A520M K is a durable Micro-ATX motherboard designed for AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series processors. Built with the AMD A520 chipset, it offers a solid foundation for essential computing and professional office systems. It features high-speed NVMe PCIe 3.0 x4 M.2 support, GbE LAN with bandwidth management, and high-quality audio capacitors for clear sound. With Smart Fan 5 technology and an anti-sulfur design, it ensures long-term reliability and efficient cooling for compact PC builds.
